DynaLine DL, DLII, DL3 Details

DynaLine Model Details

  • Maximum econony: Up to 60% savings, or more, vs. heat pumps and electric resistance units.
  • Gas heat gives a quite, warm heat, not the noisy, "cool" heat of heat pumps.
  • Easy to install: Standard-size wall case for slide-in replacment.
  • Gas heating and electric cooling in one compact unit for zone temperature control.
  • Sealed combustion gas furnace, no room air is used.
  • Two BTU/h capacities available.
  • Built-in or remove thermostat control.
Image: models/dynaline.jpg



DynaVent DNV, SA Details

DynaVent Model Details

Dynavent series DNV-25 ond DNV-40 are designed to comfortably and conveniently heat room additions, basements, garages, or apartments with central force warm-air heat, at a fraction of the cost, Sealed combustion direct-vent heating uses outside air only for combustion.

The large centrifugal blower gives big air delivery for even heat distribution, eliminating "hot" and "cold" spots, PIus an automatic blower override removes "left-over" heat from each operation cycle.

With interior and exterior gas connections the Dynavent installs quickly and easily in any exterior wall or window (with optional window kit): DIW-25 will tit between standard 16" O'C' studs. Five year limited warranty against defective material and workmanship on the heat exchanger.

Features fully automatic wall thermostat, convenient slide out chassis and solid state electronic GIow-Bar ignition. Steady state efficiency 77%

Image: models/dynavent.jpg

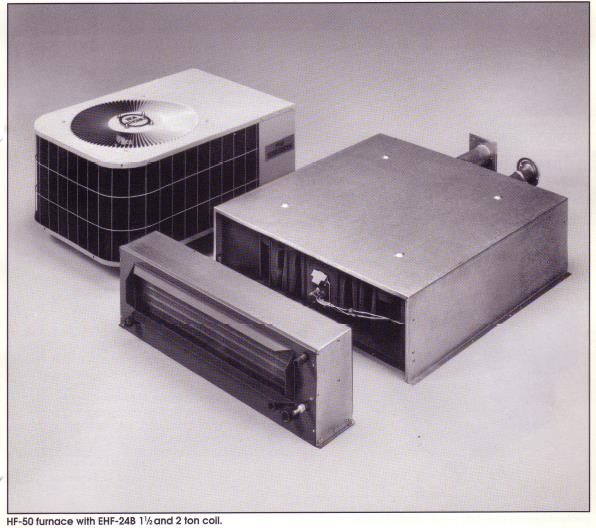

DynaTwin HF Details

DynaTwin Model Details

  • Gas heating: 35/50,000 BTU/h (Nat/LP)
  • Sealed combustion/power horizontal venting (Optional vertical)
  • Compact 10 3/8" high
  • Hot surface electronic ignition
  • AFUE 84.4% rated
  • A.G.A./C.G.A. design cerlified
  • MEA and NOX approved
  • Factory installed relays/transformer for heat/cool
  • Airflow capacily for 1 1/2, 2, 2 1/2 ton A/C
  • 115 Volt - 10 -60
Image: models/dynatwin.jpg



DynaCeil DCF Details

DynaCeil Model Details

  • Central gas heating: 30,000 BTU/h
  • A.F.U.E. 80.5%
  • Easy installation
  • Compact: mounts between ceiling joists 16" o.c.
  • Vents horizontally 20' maximum run
  • 115 volt
  • A.G.A. design certified
  • Pilotless "hot surface" ignition. No standing pilot
  • Available in Natural or LP gas
  • Sealed combustion - no room air is used
  • Ten-year limited warranty on heat exchanger
Image: models/dynaceil.jpg



TwinAire DT Details

TwinAire Model Details

  • 20,000 BTU/h Gas Heating; 11,500 BTU/h Electric Cooling.
  • 80% Steady State Efficiency
  • 8.4 EER.
  • A.G.A. /CGA Design Certified
  • Easy installation through window or wall.
  • No venting required.
  • Built-in thermostat.
  • Sealed Combustion - uses no room air for combustion.
  • Solid state hot surface ignition, No standing pilot,
  • Available in Naturol or LP gas
  • Front or rear gas connection.
  • Evaporative condensate disposol system.
  • Flush interior mounting.
  • Five-year limited warranty on compressor and combustion chamber
Image: models/twinaire.jpg
